Machineries
We have the best machineries for your needs

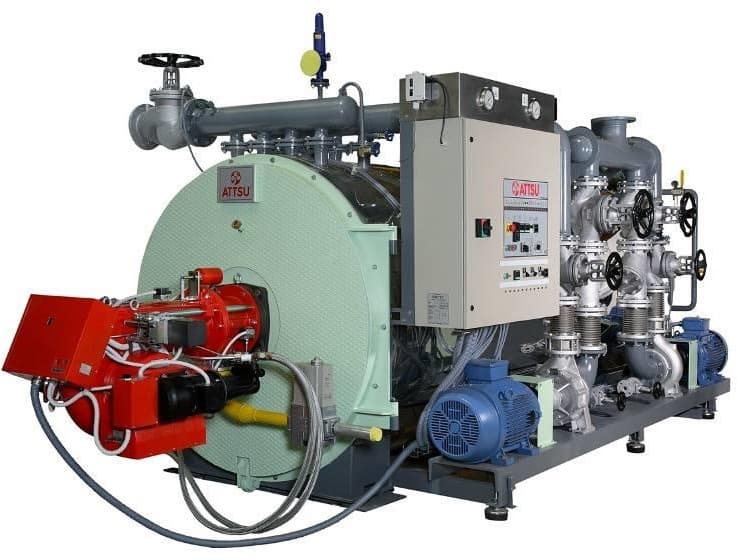

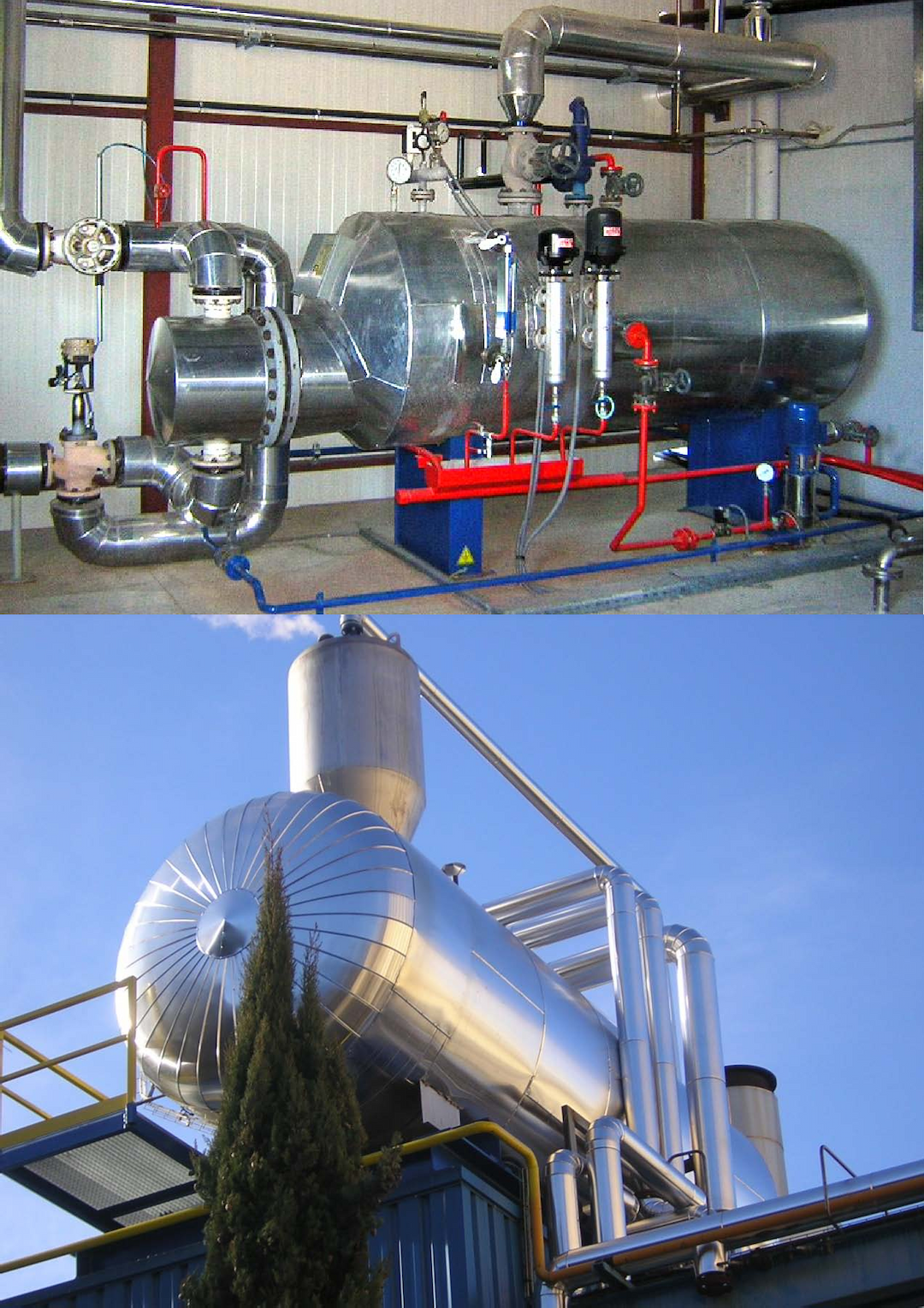

Thermal Oil Boiler ATTSU Model FT 3000/3489 kW
- Inlet/outlet manifold: seamless steel ASTM A106b sch 40 tube
- Metallic shell: S235 JR
- Steel beams: S265 JR o F 112
- External shell: AISI-304
- Country of Origin: Spain
- Manufacturer: ATTSU Termica, S.L.
Reboiler B101
- Operating Pressure: 0.25MPa
- Operating Temperature: 275℃
- Joint Efficiency: 0.85
- Heat Transfer Surface: 500m2
- Country of Origin: China
- Manufacturer: Shandong Kerui Petroleum Equipment Co., Ltd

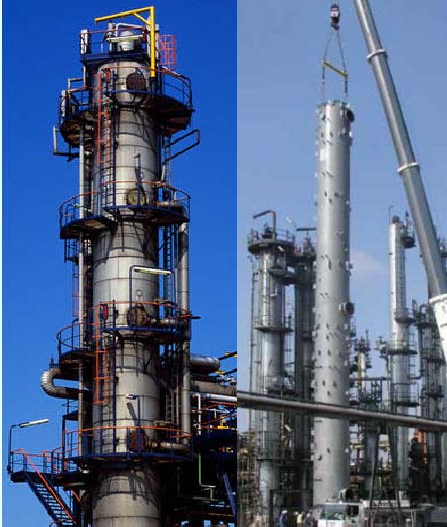

Distillation Column C101
- Operating Pressure: 0.25MPa
- Operating Temperature: 275℃
- Joint Efficiency: 0.85
- Internal material: Pall Ring, 38 × 38 × 0.8 Aluminum, 7.5m3
- Packing Grid Plate and Pressure Ring: Φ 912, 304 SS, 2 SET
- Country of Origin: China
- Manufacturer: Shandong Kerui Petroleum Equipment Co., Ltd

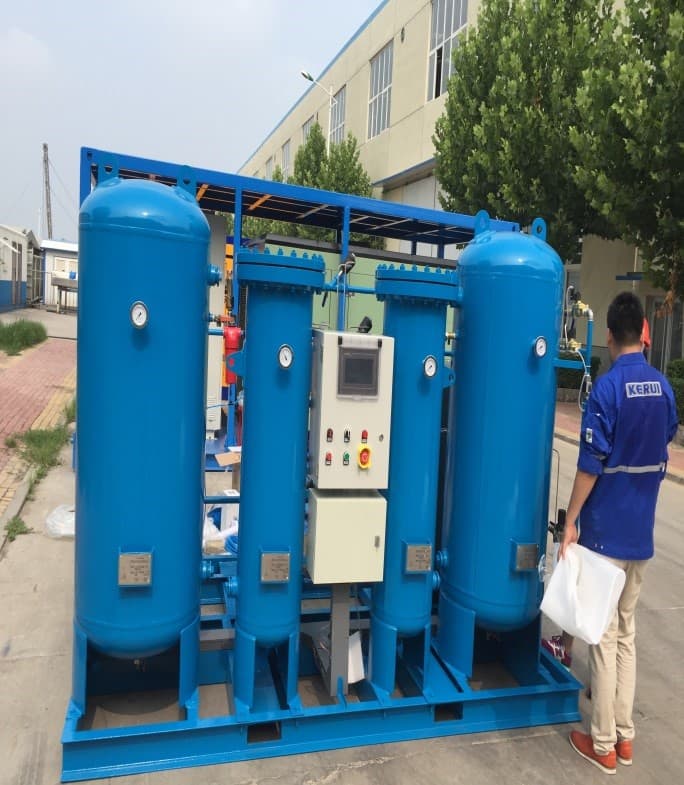

Nitrogen Generation Plant
- Nitrogen displacement: 20 Nm3/h
- Air needed: 2.6m³/min
- Nitrogen Purity: 99.99%
- Country of Origin: China
- Manufacturer: Shandong Kerui Petroleum Equipment Co., Ltd
Shell & Tube Heat Exchanger (E-101, E-102, E-103)
- Size: 16'' NPS Sch. 40 x 6,400 mm OAL
- Tube: SA213 TP304 SMLS OD 19.05 mm x 1.65 mm (Min.). Thick x approx.5,486 mm in length
- Total Tube Qty. 427
- Tube Sheet: SA182- F304L
- Channel: SA312- TP304L
- ASME U Stamp: Included
- Manufacturer: DCF Engineering Pte Ltd.

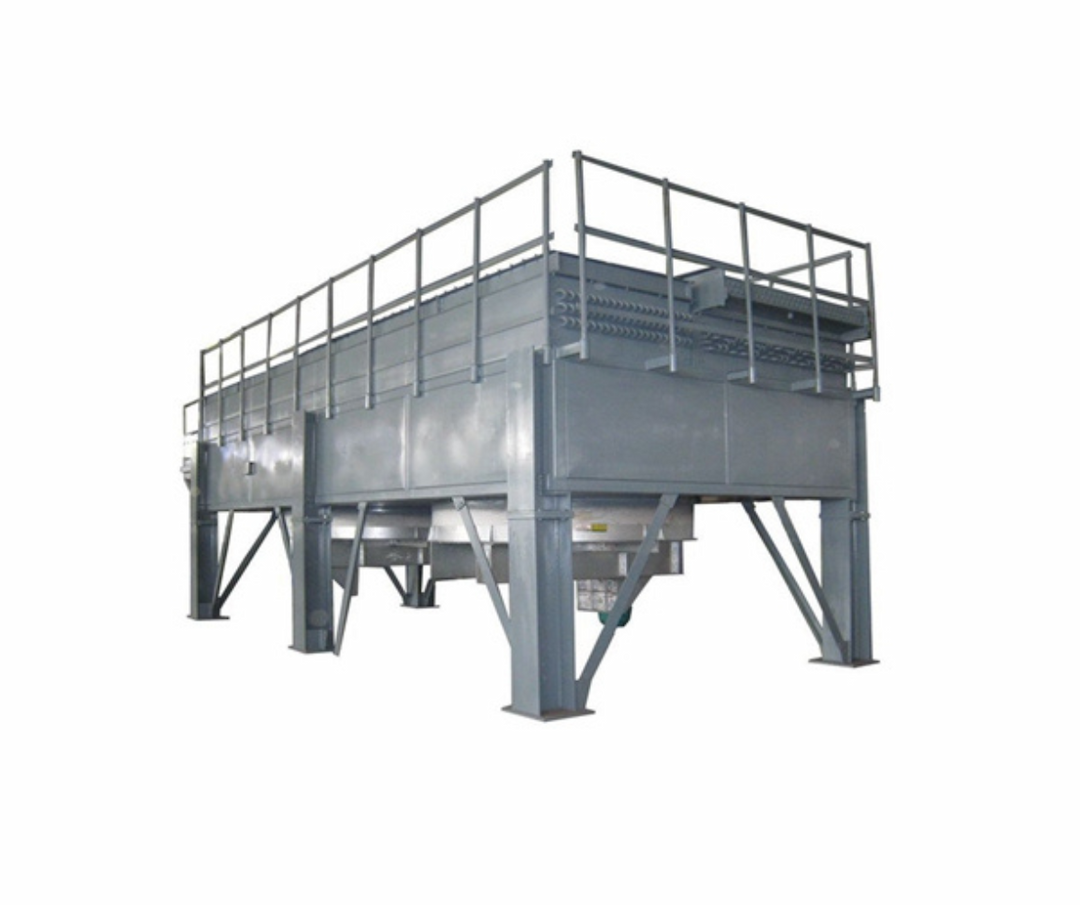

Air Cooled Heat Exchanger
- Tube Material: A179
- Tube Size: OD 25.40mm x Thickness 2.11mm x 6,650mm in length
- Total Tube Qty: 439 pcs
- Fin: OD 57.15 mm/ Aluminium A1060-O
- Fin Type: *KL*
- No. of Fin per inch: 10 FPI
- Fan & Motor: Included

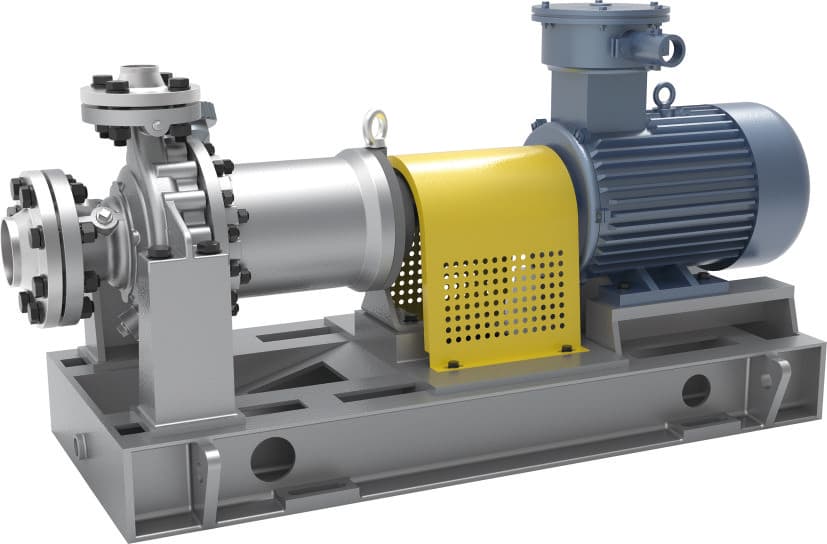

Process Pumps API-610
- Applications: Petroleum Refinery and Petrochemical Industry
- Capacity: 6 m³/min
- Head: 400 m
- Temperature: 120℃
- Size: 150 mm
- Country of Origin: South Korea
- Manufacturer: CW- Hydro, Inc.

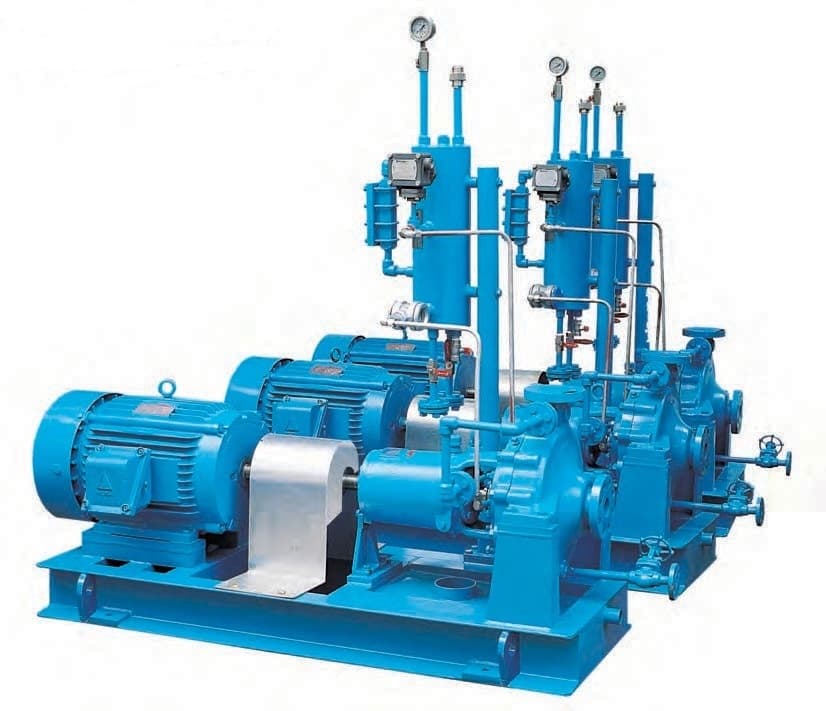

Cooling Water Pump API-610
- Applications: Boiler Feed Water, Processing Water, High Pressure Water
- Capacity: 2.5 m³/min
- Head: 500 m
- Temperature: 180℃
- Size: 100 mm
- Country of Origin: South Korea
- Manufacturer: CW- Hydro, Inc.

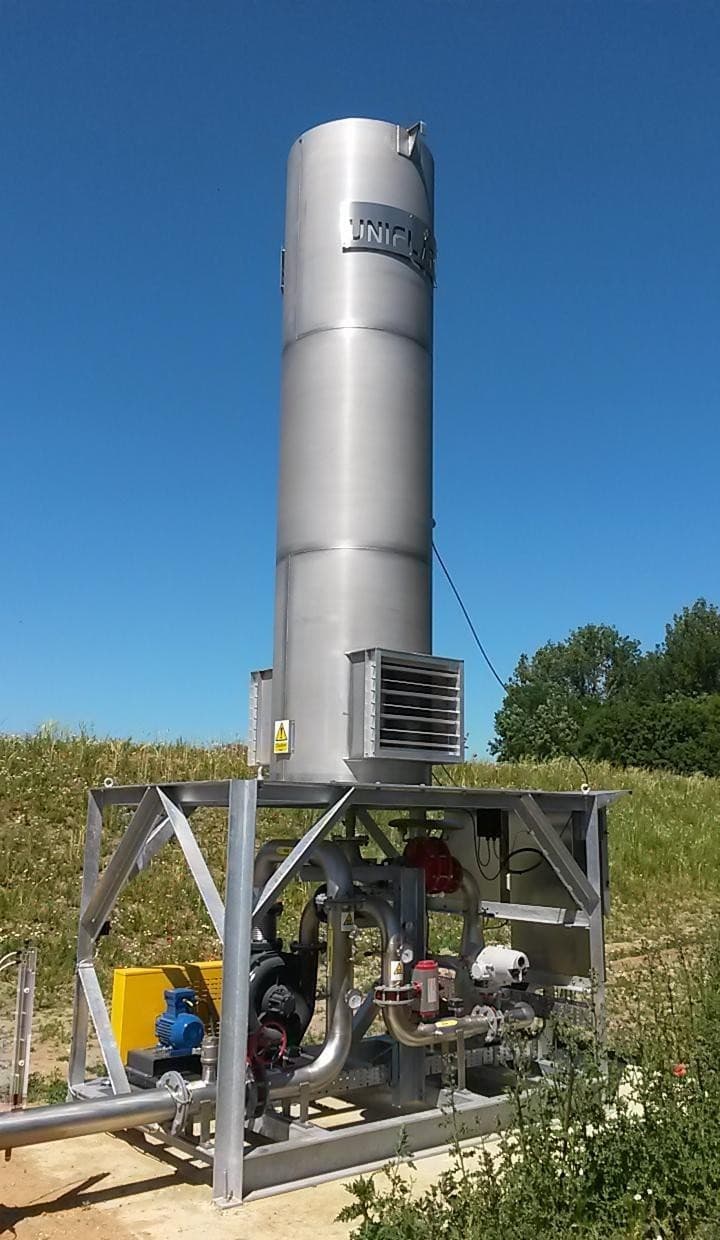

UFO-ENV Non-Visible Flare (50 Nm3hr)
- Stainless Steel Construction
- Approx 850 deg C
- Integrated Safety System
- Latest PLC Controlled Operation
- Compatible with SCADA Control
- Leading Cyclonic Burner Technology
- Gas Pressure Protection
- IS Barriers
- Local Isolators
- Flush Back Protected Flame Arrestor
- Pressure and Temperature Monitoring
- Pneumatic Slam Shut Operation
- Country of Origin: UK
- Manufacturer: Uniflare Ltd.

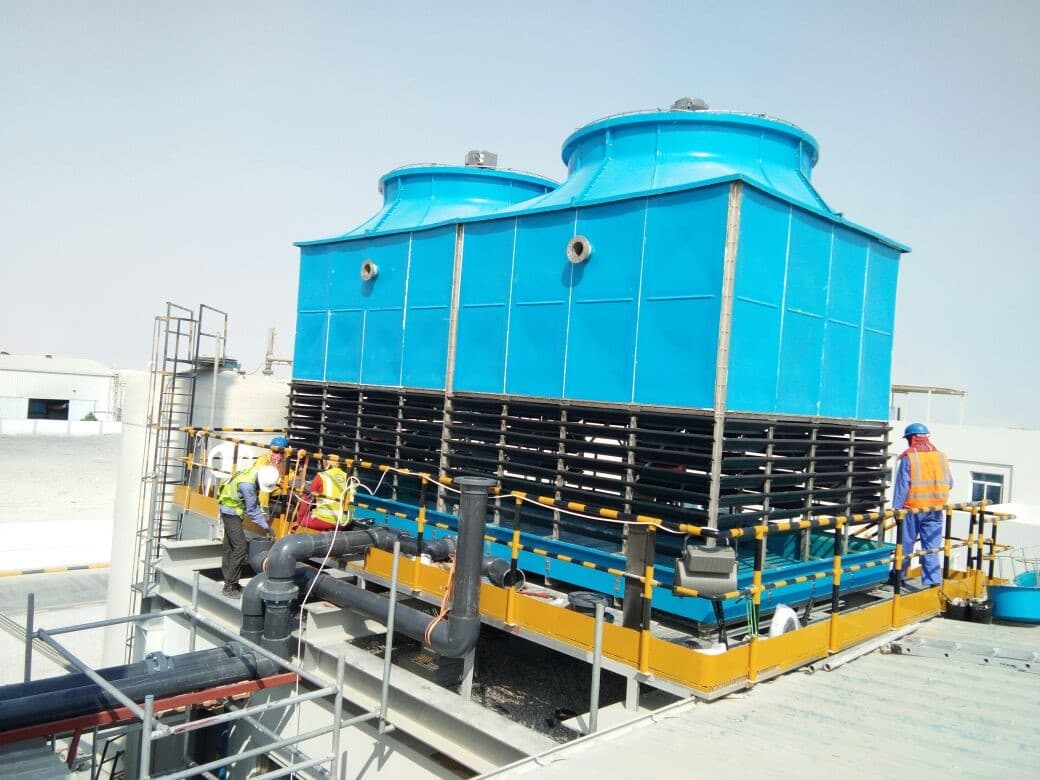

FRP Cooling Tower (MODEL No: SA 032)
- Country of Origin: India
- Manufacturer: Towertech Cooling Systems Pvt ltd.

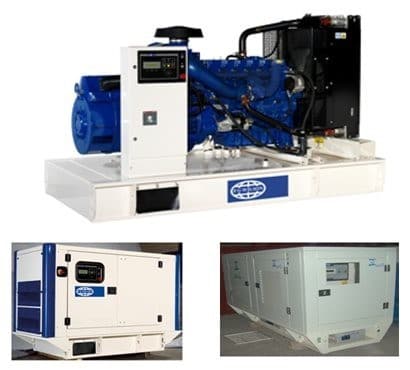

Diesel Generator, 400 KVA
- Brand: FW Wilson
- Supplied By: Energypac Power Generation Ltd.
- Model: P400-3
- Rating: Prime 350.0 kVA /280.0 kW
- Rating: Standby 400.0 kVA /320.0 kW
- Voltage: 380-415 Volts
- Phase: 3
- Frequency: 50 Hz
- Engine Operating Speed: 1500 rpm at NTP conditions
- Diesel Engine: Perkins
- Class: ISO 8528 G2
- No of Cylinder / Alignment: 6 in line
- Cycle: 4 Strokes
- Fuel Tank Capacity: 888 Litres
- Fuel Consumption: 59.3 L/hr @ 75% load
- Alternator Model: EG315M-280N
- Insulation Class: H
- Base Frame Type: Heavy Duty Fabricated Steel
- Battery: 24 volt
- Cooling System: Water Cooled
